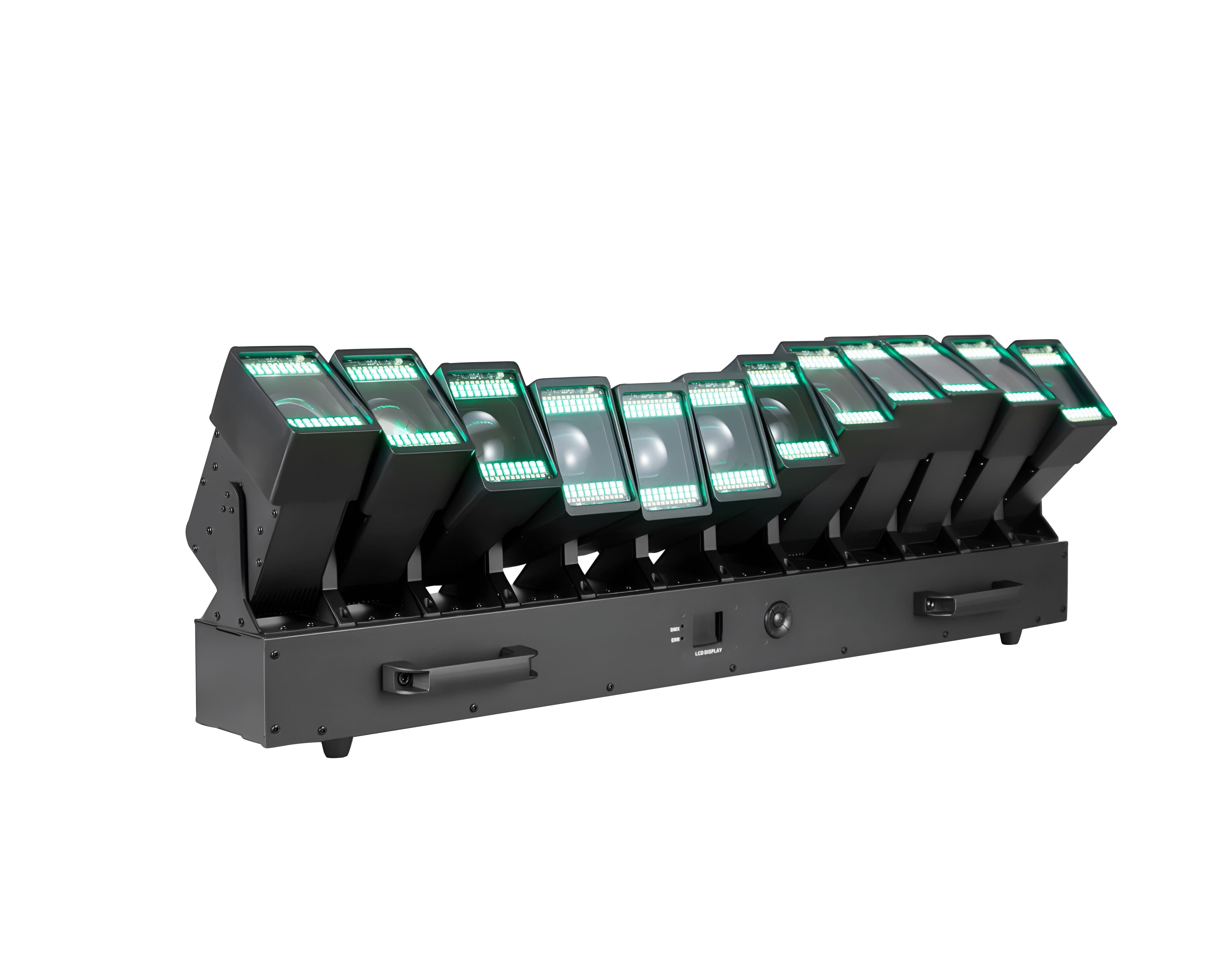

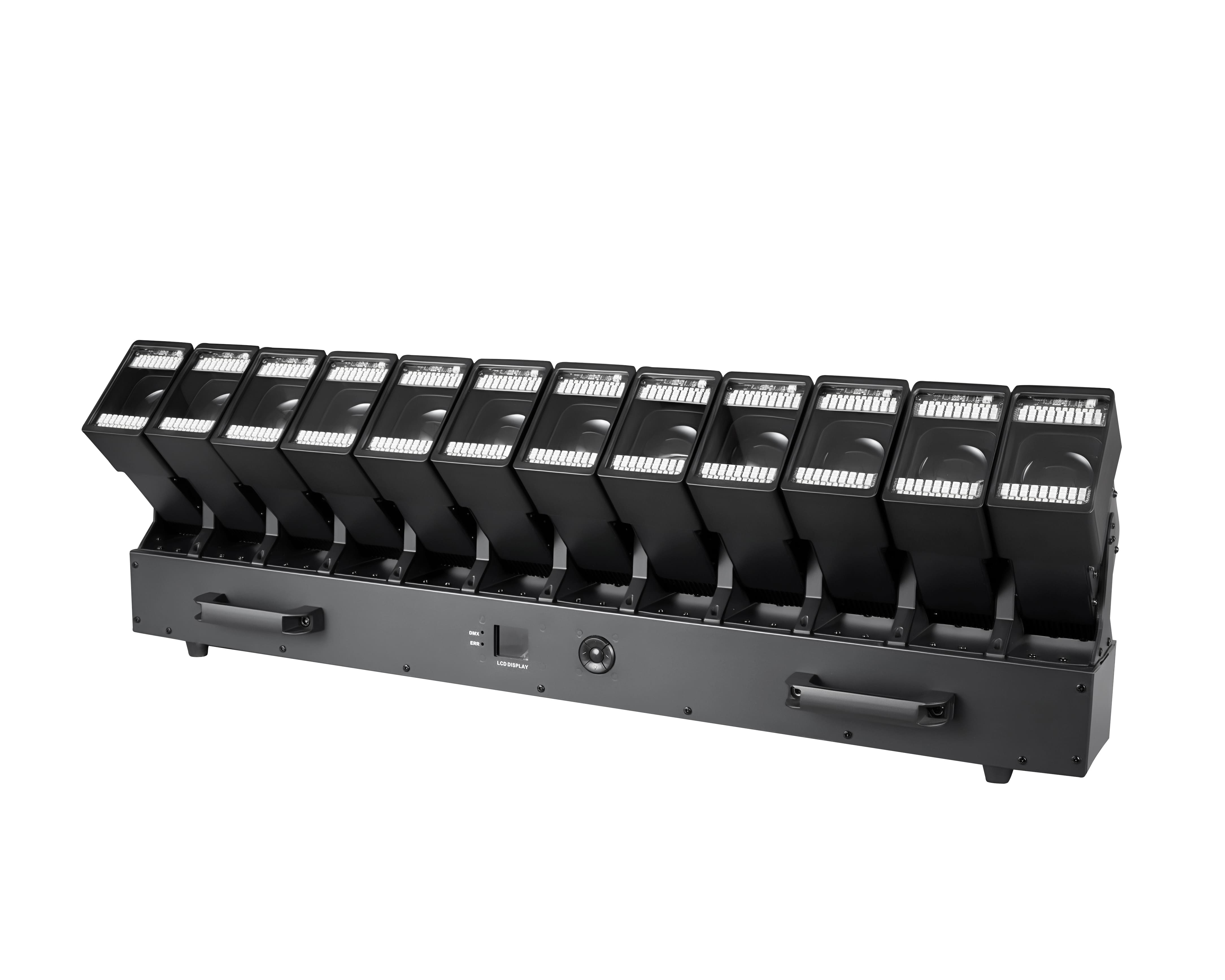

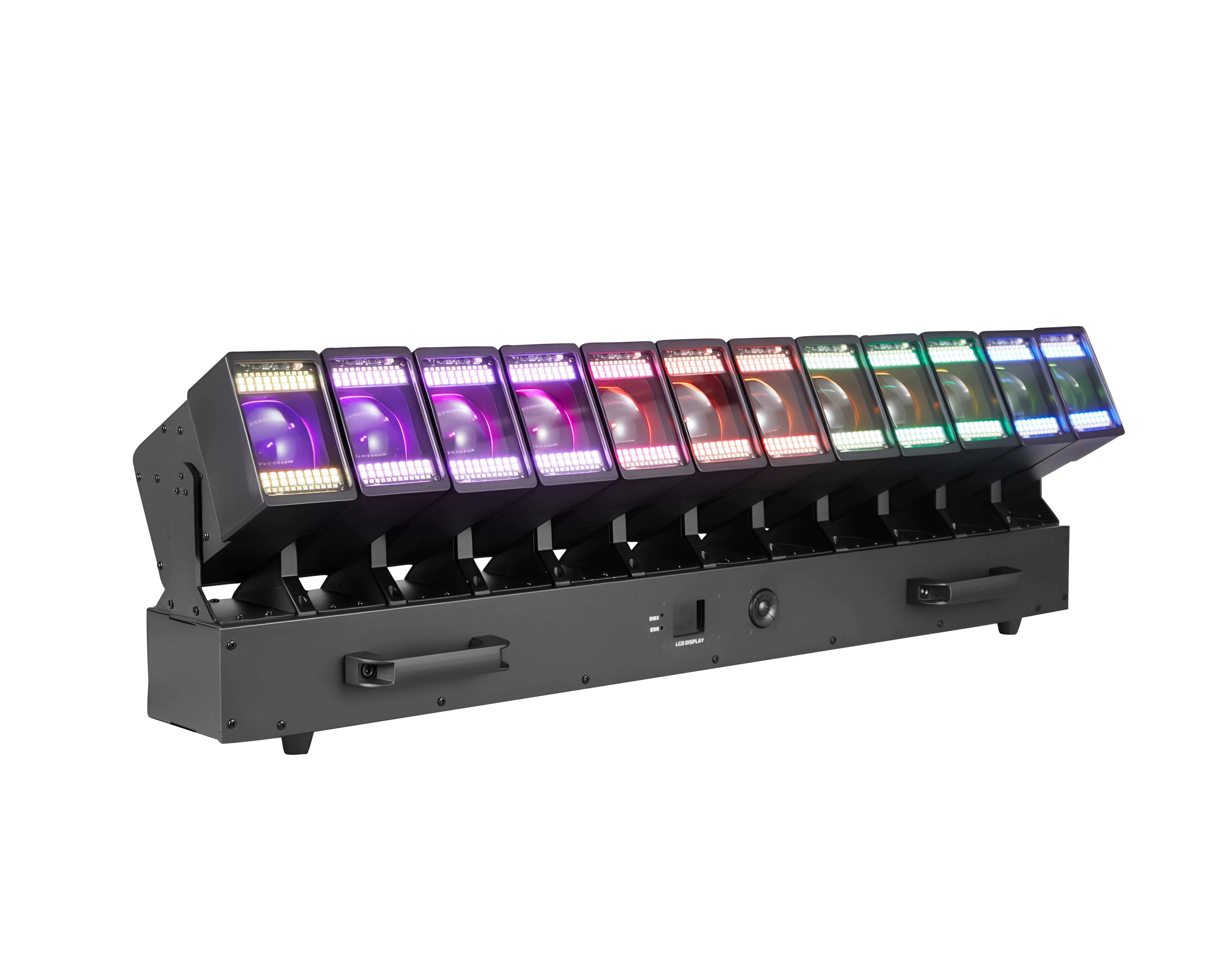

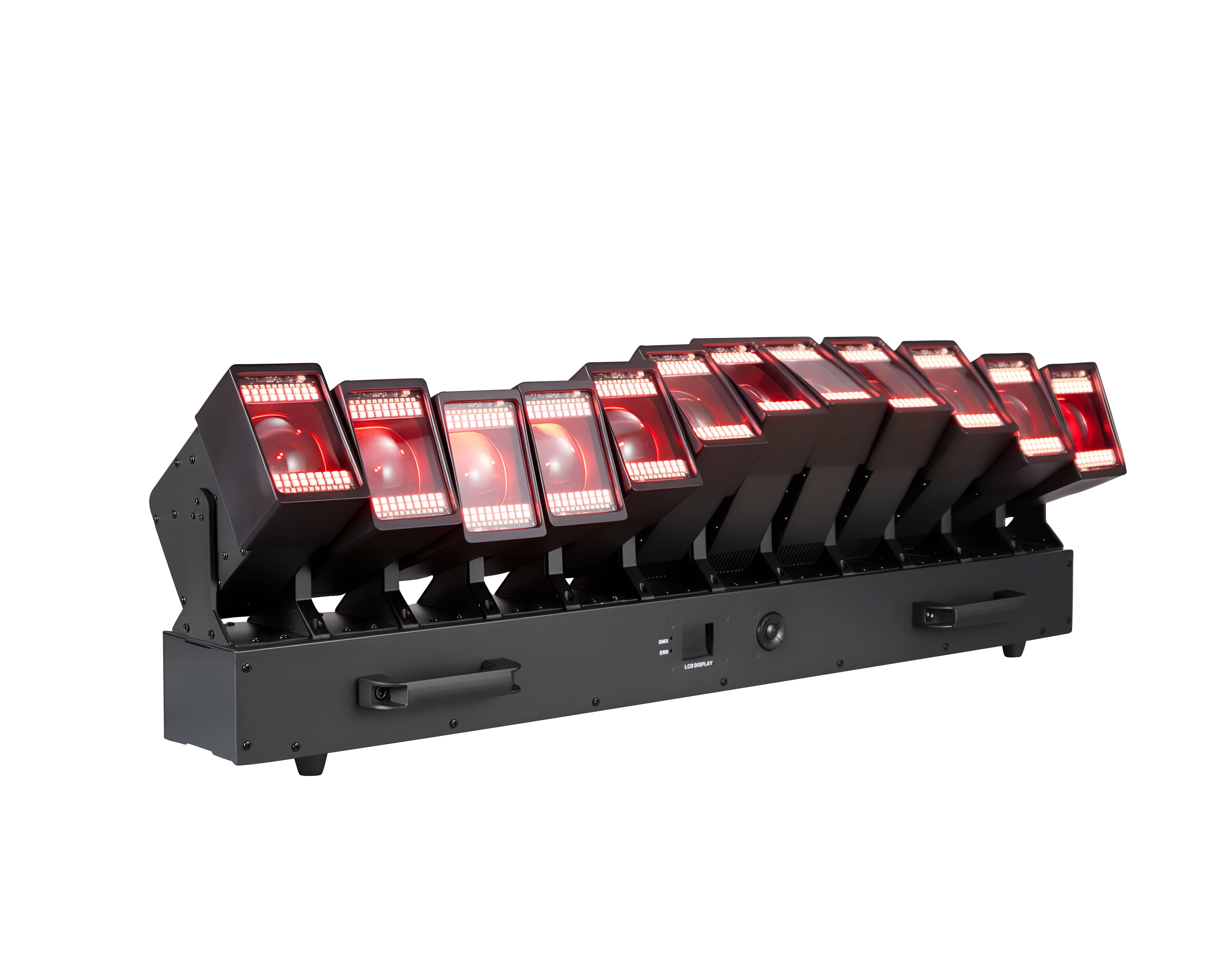

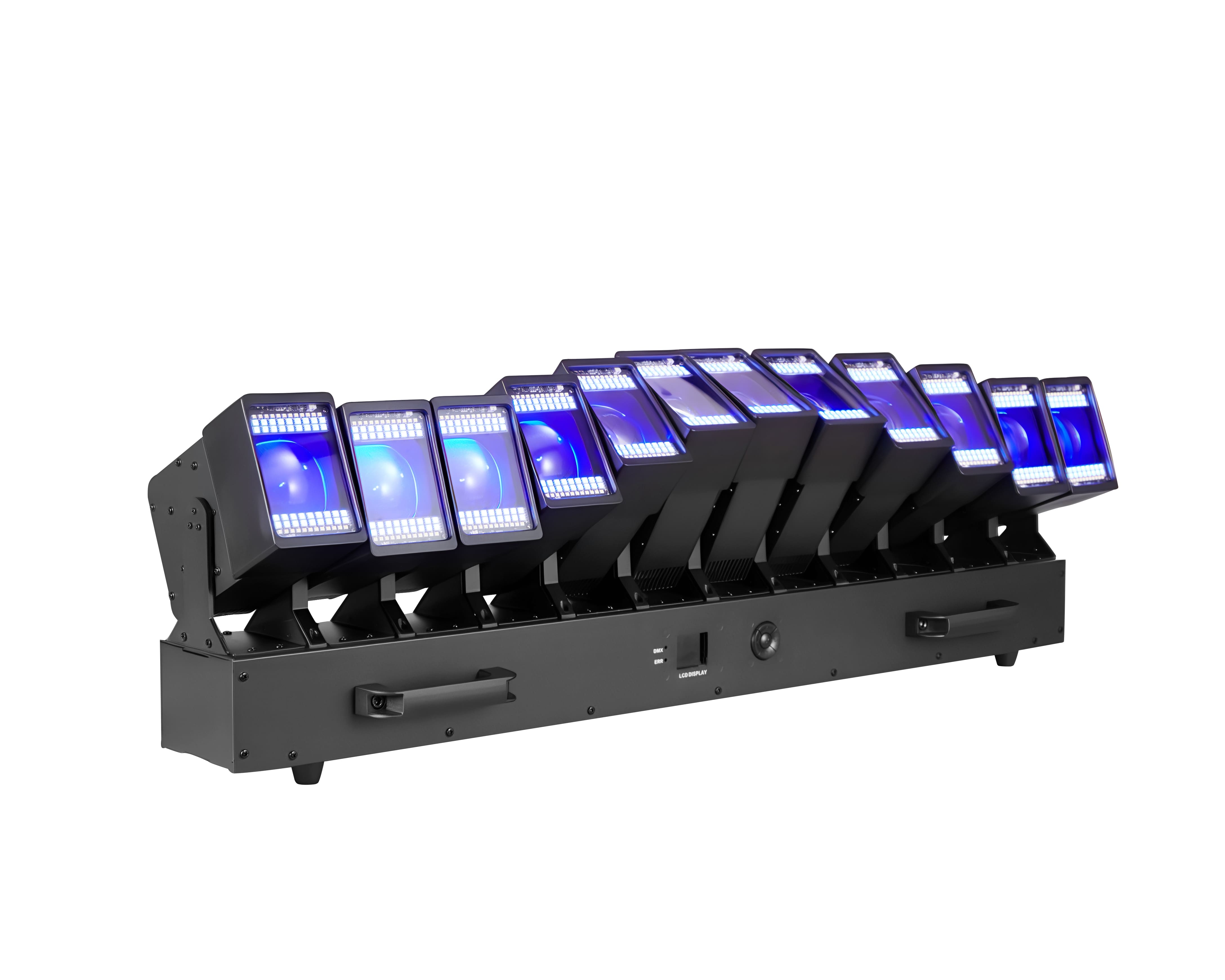

LED Effect Beam Moving Head 3in1 stage Light X-LE29
Key Specifications

Lighting Solutions Service | Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, Auto CAD layout, Onsite metering, Project Installation |
Input Voltage | AC100-240V 50/60HZ |
Product Weight | 10 kg |
Place of Origin | Guangdong, China |
Emitting Color | RGB, RGBW |
Lamp Body Material | Aluminum + Plastic |
Light Source | LED |
Control Mode | DMX512 |
Support Dimmer | Yes |
Working Temperature | -30°C to 50°C |
Brand Name | XLIGHTING |
Logo/Pattern | UV printing, Laser Printing, 3D Printing, Embossing, Laser Engraving |
Power Supply Power | 1000W |
Lamp Beads | 60W x 12 pieces |
Control Method | DMX512, self-propelled, master-slave, voice control with RDM function |
Channel Modes | CH7/CH14/CH16/CH35/CH60/CH82/CH84 |
Dimming | 32bit 0-100% linear dimming |
Features | XY shake head, beam, flash, dye focus with single point control |
Strobe Frequency | 1-30HZ |
Appearance | Metal, Black |
Connection Method | DMX512 input/output, power input/output |
Application Scenarios
The XLIGHTING New Effect Beam Moving Head Light 3-in-1 Wave LED Bar is an exceptional lighting fixture that excels in a variety of event and performance settings. Its 12-head design, combined with beam, flash, and dye focus effects, ensures a powerful and visually captivating experience. This makes it a go-to choice for large-scale concerts, where the light’s versatility enhances live performances with dramatic strobe effects, sweeping beams, and precise spotlights. The 32-bit linear dimming function allows for smooth transitions, ensuring perfect ambiance during calmer moments of a performance, while the rapid strobe effect energizes high-impact scenes.
For DJ shows and nightclubs, the X-LE29’s ability to synchronize with music through voice control and DMX512 ensures a dynamic, music-driven light show. The unlimited flexibility in channel modes offers lighting designers the freedom to create customized lighting sequences, bringing clubs and parties to life with colorful, synchronized lighting effects that captivate audiences.
The X-LE29 is also well-suited for theatrical performances and stage productions. Its accurate dye focus and single-point control features allow for detailed lighting setups that highlight specific areas of the stage. The 3-in-1 design reduces the need for multiple fixtures, simplifying setups without compromising on creative lighting potential. In corporate events and exhibitions, the sleek appearance and customizable logo or pattern options add a professional touch, while the light’s powerful 60W LEDs ensure excellent visibility and impact in any environment.


-
✔
Q: Can the effect lights be used for both indoor and outdoor events?
A: While most of our effect lights are designed for indoor use, we offer weather-resistant models suitable for outdoor events. Be sure to check the product specifications for IP ratings and outdoor capabilities. -
✔
Q: Are the lights easy to transport?
A: Yes, the compact and lightweight design of our LED effect lights makes them highly portable and ideal for mobile DJs, event organizers, and anyone needing flexible lighting solutions.
