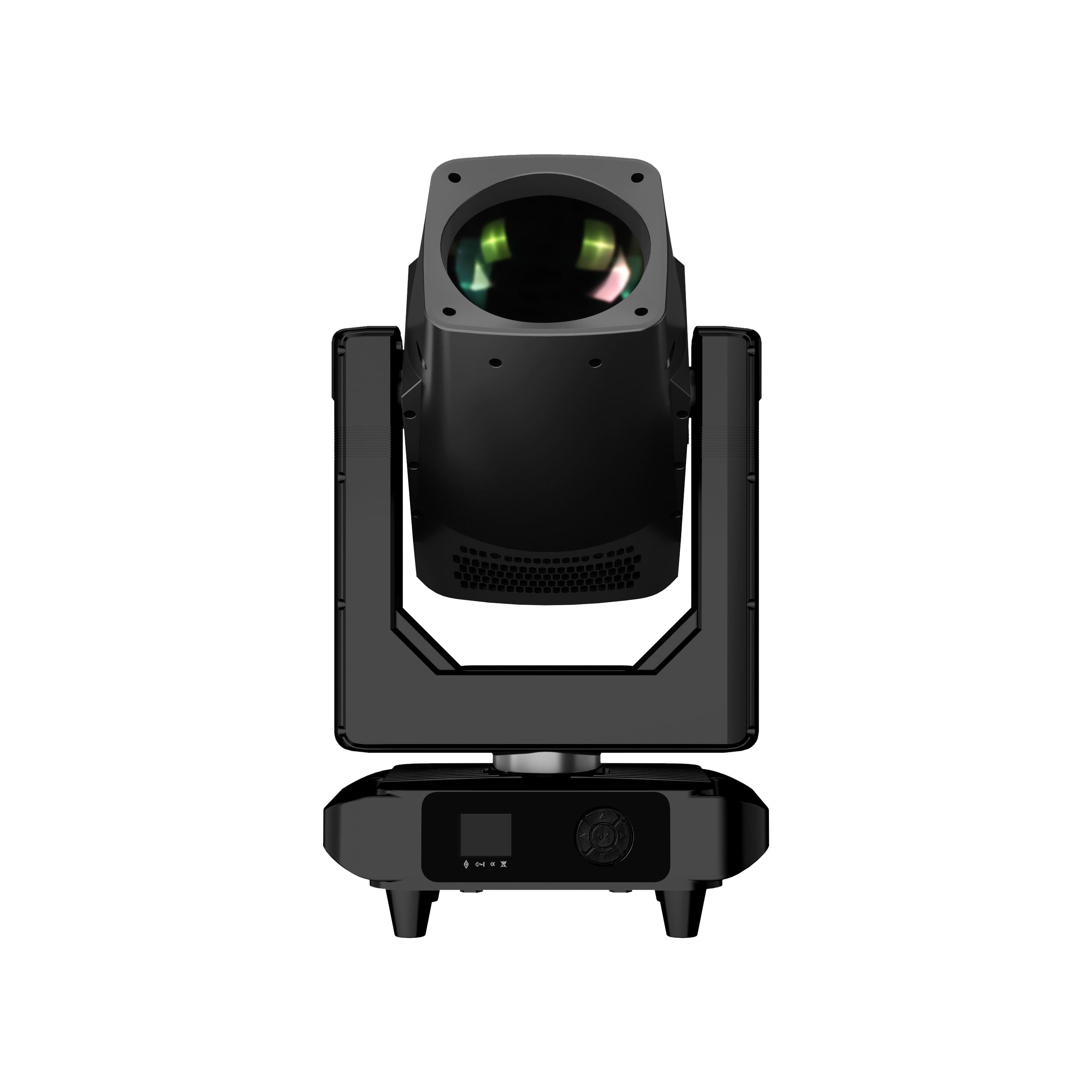

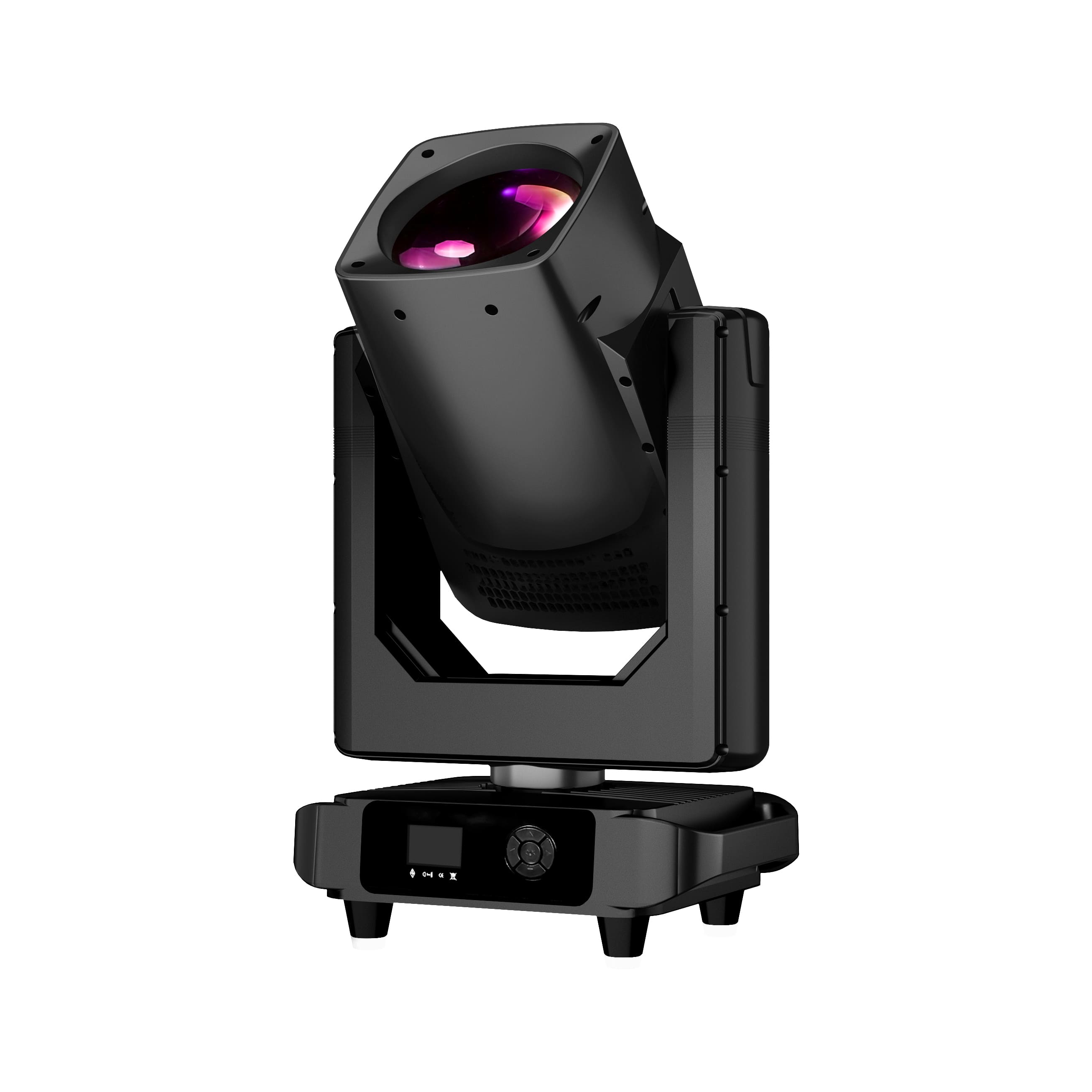

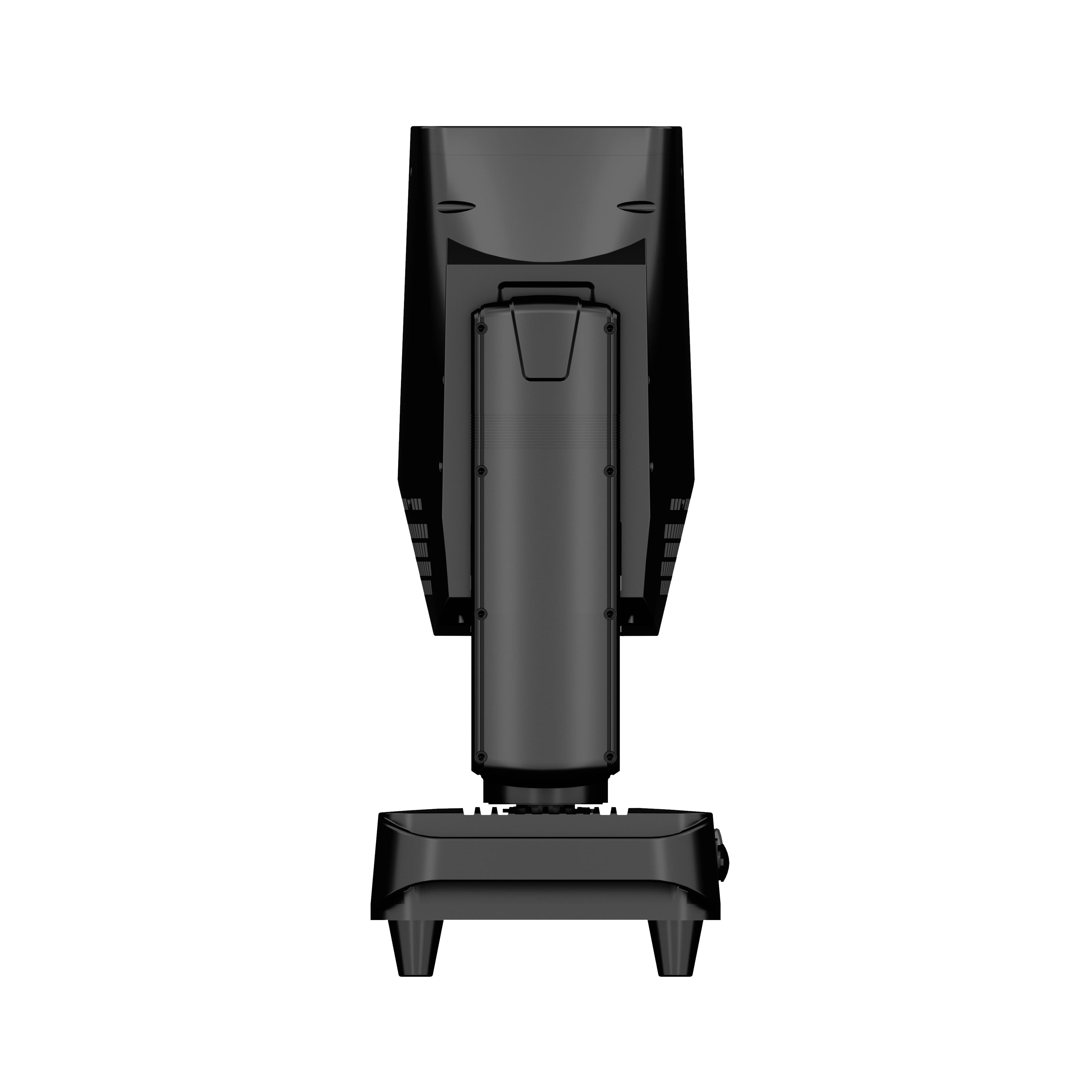

120W Moving Head Laser Light 3IN1 X-M09
Professional IP65 Moving Head Laser Light for Outdoor Stage, Concert, and Touring Applications
The 120W Moving Head Laser Light 3IN1 X-M09 is a next-generation professional lighting fixture engineered for high-end stage productions, concerts, festivals, and large-scale entertainment venues. Combining the functions of a beam light, laser effect light, and moving head fixture, the X-M09 delivers exceptional brightness, ultra-precise beam projection, and stunning aerial effects.
Powered by a 120W white laser module, this fixture produces an incredibly sharp 0.8° beam angle, making it ideal for long-throw applications and large venues. Featuring an advanced optical system, multiple prism effects, and an IP65-rated housing, the X-M09 is designed to perform flawlessly in both indoor and outdoor environments.
Whether used in touring productions, permanent installations, or outdoor festivals, the X-M09 offers lighting designers unlimited creative possibilities.
High-Brightness White Laser Light Source
At the core of the X-M09 is a powerful 120W white laser engine, capable of generating extremely concentrated beams with exceptional brightness and long projection distances.
Key advantages include:
● Ultra-high beam intensity
● Excellent aerial beam visibility
● Long-distance projection capability
● Reduced light spill for precise stage effects
● Superior energy efficiency compared to traditional discharge lamps
With a luminous output exceeding 5600 lumens, the fixture delivers outstanding performance even in large arenas and outdoor venues.
Ultra-Narrow 0.8° Beam for Spectacular Aerial Effects
The X-M09 features an ultra-sharp 0.8-degree beam angle, creating highly defined aerial effects that cut through haze and atmospheric conditions with incredible precision.
This narrow beam is ideal for:
● Concert touring productions
● Stadium performances
● Outdoor festivals
● Large-scale stage shows
● Architectural lighting applications
● Nightclub and entertainment venues
The tight beam projection creates dramatic sky-tracking effects and immersive visual experiences.
Rich Color Mixing System
The fixture includes:
●14 colors + open white
● Smooth color transitions
● Half-color effect function
Lighting designers can easily create vivid color combinations, split-color effects, and dynamic color changes to match any performance atmosphere.
From vibrant concert looks to elegant theatrical scenes, the X-M09 offers exceptional color versatility.
Multiple Gobo and Prism Effects
Static Gobo Wheel
The X-M09 is equipped with:
● 15 static gobos
● Open white position
These gobos allow users to project a variety of textures, shapes, and atmospheric effects onto stages, scenery, and architectural surfaces.
Advanced Prism System
The fixture includes:
● 15 prism rotation effects
● Independent forward and reverse rotation control
The multiple prism combinations dramatically multiply the beam output, producing breathtaking aerial effects and immersive beam arrays.
Precision Optical System
The X-M09 adopts a professional-grade optical system featuring:
● High-precision cemented optical lenses
● Linear focus adjustment
● Adjustable soft light effect
● Diffusion angle of 8°
The advanced optics ensure:
● Sharp beam definition
● Uniform light distribution
● Smooth focus transitions
● Enhanced visual performance
The independent soft-light system enables users to quickly switch between sharp beam effects and softer wash-like outputs.
Ultra-Quiet High-Speed Motion System
To ensure smooth and silent operation, the fixture incorporates:
● 16 ultra-quiet motors
● High-speed three-phase XY-axis motor system
● Ultra-fast pan and tilt response
This advanced motion system delivers:
● Precise positioning
● Rapid movement
● Minimal operational noise
● Enhanced reliability for theater and broadcast environments
The quiet motor design makes the X-M09 especially suitable for professional theaters, television studios, and performance venues where noise control is critical.
Professional Dimming and Strobe Functions
Linear Dimming
● 0-100% smooth linear dimming
The dimming system provides seamless brightness transitions without visible stepping.
Electronic Strobe
● Electronic strobe frequency up to 20 flashes per second
The high-speed strobe function creates dynamic visual effects synchronized with music and performances.
IP65 Waterproof Construction
Built for demanding environments, the X-M09 features a rugged IP65-rated housing that protects against:
● Rain
● Dust
● Humidity
● Outdoor environmental conditions
The fixture housing combines:
● Magnesium-aluminum alloy construction
● Carbon fiber composite materials
● Die-cast structural components
This robust design provides excellent heat dissipation, durability, and long-term reliability.
Touring-Friendly Design
The fixture includes an integrated foldable mounting hook system, allowing:
● Faster installation
● Easier transportation
● Simplified maintenance
● Reduced setup time
This makes the X-M09 an excellent choice for rental companies and touring productions.
Ideal Applications
The 120W Moving Head Laser Light 3IN1 X-M09 is widely used in:
● Concert tours
● Outdoor music festivals
● Stadium events
● Large-scale stage productions
● TV studios
● Theaters
● Nightclubs
● Theme parks
● Architectural lighting projects
● Rental and production companies
Why Choose the X-M09 Moving Head Laser Light?
✓ Powerful 120W white laser module
✓ Ultra-narrow 0.8° beam angle
✓ IP65 waterproof protection
✓ 14 colors + multiple prism effects
✓ 15 static gobos for creative projections
✓ Ultra-quiet high-speed motor system
✓ Professional DMX512 control
✓ Rugged touring-grade construction
✓ Long 20,000-hour light source lifespan
✓ Ideal for indoor and outdoor applications
The X-M09 120W Moving Head Laser Light 3IN1 combines laser precision, high-output performance, and professional reliability, making it the ideal fixture for lighting professionals seeking exceptional beam effects and outstanding durability in demanding production environments.
Key Specifications
| DMX Channel Count | 27 channels in standard mode / 16 channels / 27 channels |
| Operation Mode | DMX512 Mode, etc |
| Control Panel | LCD LED display + button control |
| Laser Module Power | 120W White Laser Module |
| XY Axis Motor | Ultra-quiet, ultra-high-speed three-phase motor |
| Color Temperature | 10,000K |
| Average Lifespan | 20,000 hours |
| Luminous Flux | >5600LM |
| Color Effects | 14 colors + white light, half-color effect |
| Static Patterns | 15 static patterns (including all white light holes) |
| Prism Rotation | 15 types of prism rotation, independent forward & reverse rotation control |
| Optical Lens | High-precision cemented optical lens |
| Soft Light Effect | Adjustable spot angle for soft light, 8-degree diffused light angle |
| Focus Mode | Linear focusing |
| Dimming Range | 0-100% linear adjustment |
| Beam Angle | 0.8 degrees |
| Stroboscope | Electronic Strobe (20 times/second) |
| Housing Material | Magnesium-aluminum alloy + carbon fiber plastic |
| Lamp Hook | Integrated foldable lamp hook, easy disassembly, assembly and transportation |
| Protection Class | IP65 |
| Lamp Body Weight | 29KG |
| Total Power | Around 210W |
