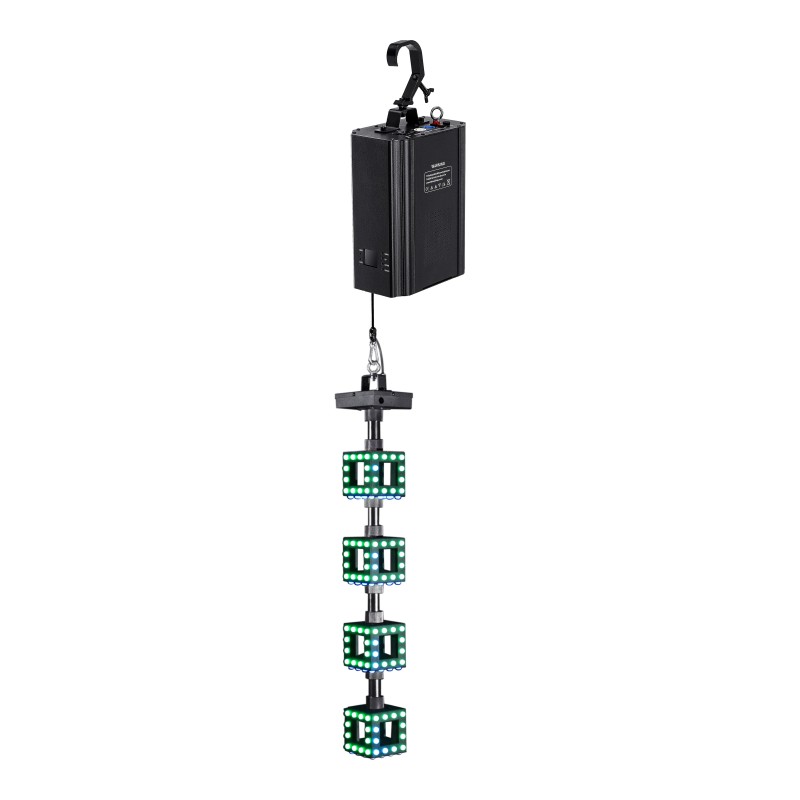

Kinetic Lighting System Dynamic 3D Light X-K47
Professional DMX Kinetic 3D Lighting System for Immersive Stage Visual Effects
The Kinetic Lighting System Dynamic 3D Light X-K47 is an advanced kinetic lighting solution that combines precision lifting technology with an innovative RGB 3D pixel light fixture to create breathtaking three-dimensional visual effects. Designed for professional stage productions, concerts, television studios, exhibitions, and immersive entertainment venues, the X-K47 enables lighting designers to transform ordinary spaces into dynamic visual environments.
Powered by a reliable DMX-controlled kinetic winch, the 3D lighting fixture moves smoothly through the air while displaying vibrant pixel-mapped RGB animations. The combination of synchronized motion and programmable lighting creates stunning floating effects that cannot be achieved with traditional static fixtures.
Supporting both DMX512 and MADRIX control systems, the X-K47 is an excellent choice for professional lighting engineers, rental companies, system integrators, and venue designers looking to build next-generation kinetic lighting installations.
Key Specifications
Kinetic Winch
● Input Voltage: AC 90–240V, 50/60Hz
● Power Consumption: 150W
● Control Channels: 4CH
● Control Protocol: DMX512, MADRIX
● Working Temperature: -5°C to 45°C
● Net Weight: 5.6kg
● Gross Weight: 7.0kg
Dynamic 3D Light Module
● Operating Voltage: DC24V
● Power Consumption: 30W
● LED Color: RGB Full Color
● Pixel Quantity: 241 Pixels
● Dimensions: 765 × 133 × 113 mm
● Net Weight: 1.4kg
Innovative Dynamic 3D Lighting Design
Unlike conventional stage lighting fixtures, the X-K47 features a specially designed Dynamic 3D Light Module capable of producing eye-catching three-dimensional visual effects.
With 241 individually controllable RGB pixels, the fixture can display flowing animations, color gradients, graphic patterns, and synchronized lighting effects that appear to float in mid-air. When combined with kinetic movement, these effects create a unique sense of depth and motion, delivering an immersive visual experience for audiences.
Whether used individually or as part of a large kinetic lighting array, the X-K47 offers exceptional creative possibilities for modern stage productions.
Smooth and Accurate Kinetic Motion
The integrated kinetic winch is designed for smooth, stable, and highly accurate lifting performance.
The intelligent lifting mechanism allows the fixture to move vertically with precision, enabling designers to create synchronized aerial choreography that perfectly matches music, video, and stage performances.
Key benefits include:
● Smooth vertical movement
● Stable positioning
● Quiet operation
● High positioning accuracy
● Reliable long-term performance
By programming multiple fixtures together, designers can create dynamic waves, floating formations, geometric animations, and large-scale kinetic displays that continuously evolve throughout the performance.
241-Pixel RGB Mapping Technology
The X-K47 utilizes a high-density 241-pixel RGB lighting engine, allowing each pixel to be individually controlled through professional lighting software.
This enables advanced lighting effects such as:
● Pixel mapping
● Video simulation
● Flowing animations
● Gradient transitions
● Chasing effects
● Color waves
● Dynamic graphics
● Music-synchronized lighting
When integrated with MADRIX or other pixel control software, the X-K47 becomes a powerful tool for creating immersive multimedia environments.
Professional DMX512 & MADRIX Compatibility
The X-K47 has been developed specifically for professional lighting applications and fully supports industry-standard control protocols.
Supported control systems include:
● DMX512
● MADRIX
The 4-channel control mode provides efficient management of both lifting movement and lighting synchronization while allowing seamless integration into existing stage lighting systems.
This compatibility makes the X-K47 suitable for projects ranging from small venues to large touring productions and permanent installations.
Compact, Lightweight, and Easy to Install
The lightweight design of the Dynamic 3D Light module significantly reduces the load on the kinetic winch while improving installation efficiency.
Advantages include:
● Easy transportation
● Quick installation
● Reduced structural load
● Lower maintenance costs
● Reliable operation during continuous performances
Its compact dimensions also allow multiple fixtures to be installed in limited ceiling space, making it ideal for creating dense kinetic lighting arrays.
Designed for Professional Reliability
Built for demanding entertainment environments, the X-K47 operates reliably within temperatures ranging from -5°C to 45°C, ensuring stable performance during extended productions.
The high-quality winch mechanism and durable lighting module are engineered for continuous operation in professional venues such as theaters, concert halls, television studios, and exhibition centers.
Typical Applications
The Kinetic Lighting System Dynamic 3D Light X-K47 is widely used in:
● Concert stages
● Music festivals
● TV studios
● Theater productions
● Nightclubs
● Corporate events
● Exhibition halls
● Product launches
● Luxury hotels
● Shopping malls
● Theme parks
● Immersive multimedia installations
● Art museums
● Digital art exhibitions
● Wedding venues
Why Choose the X-K47 Dynamic 3D Light?
● Innovative kinetic 3D lighting solution
● Smooth and precise DMX-controlled lifting system
● 241 individually controllable RGB pixels
● Compatible with DMX512 and MADRIX
● Perfect for pixel mapping and animated lighting effects
● Lightweight fixture for reliable kinetic operation
● Easy installation and maintenance
● Excellent for immersive stage productions
● Suitable for both permanent installations and rental applications
● Creates unique floating three-dimensional visual effects
Bring Motion and Digital Art Together
The Kinetic Lighting System Dynamic 3D Light X-K47 combines kinetic movement, pixel-mapped RGB technology, and intelligent DMX control into a single professional lighting solution. Its ability to merge synchronized motion with dynamic digital visuals makes it an ideal choice for designers seeking to create immersive, futuristic, and unforgettable stage experiences.
Winch:
1 Operate Voltage:90-240v,50-60HZ;
2 Power :150W
3 Control Channel: 4CH
4 Control Model:DMX512, MADRIX
5 Work permit temperature: -5-45 degree
7 N.W:5.6kg;
8 G.W:7.0kg;
Magic 3D light:
1. Voltage: DC24V, 30W
2. Color: RGB
3. Pixel: 241 pixel
4. Size: 76.5*13.3*11.3CM
5. N.W: 1.4KG
