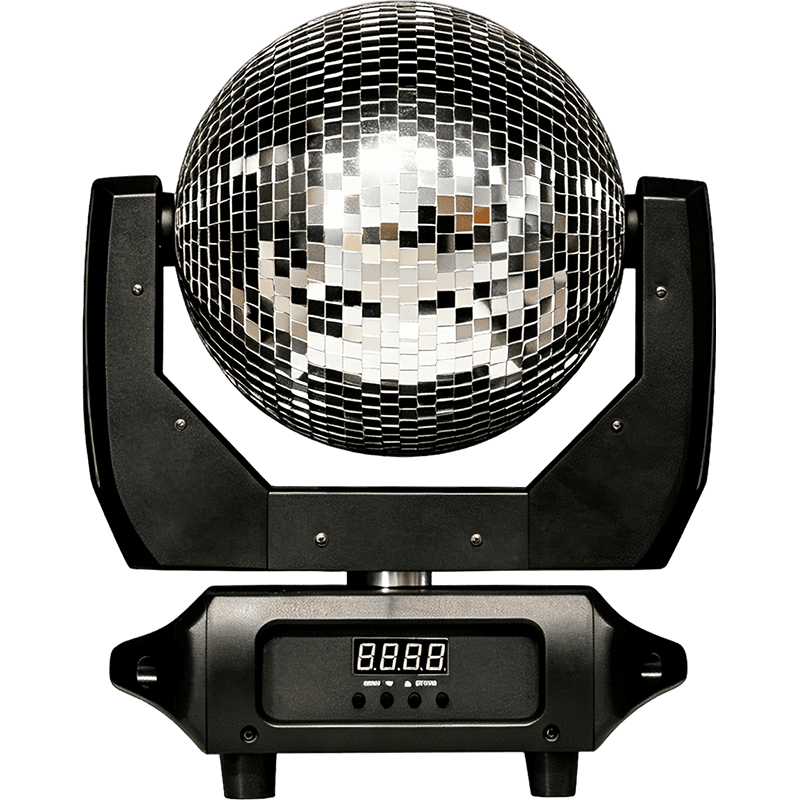

Nightclub Rotating Mirror Ball Light X-M25
Professional DMX Rotating Mirror Ball Lighting Fixture for Nightclubs, DJs, and Entertainment Venues
The Nightclub Rotating Mirror Ball Light X-M25 is a professional decorative effect lighting fixture designed to bring classic mirror ball effects into modern entertainment environments. Combining a traditional 25cm mirror ball design with advanced motorized rotation control and DMX512 compatibility, the X-M25 creates dynamic reflections and moving light patterns that enhance the atmosphere of nightclubs, bars, DJ stages, weddings, and special events.
Unlike conventional static mirror balls, the X-M25 features a professional mechanical movement system with 540° pan rotation and 360° continuous tilt rotation, allowing the mirror ball to move freely and distribute reflected light across the entire venue. With multiple control modes including DMX512, sound activation, and automatic operation, users can easily synchronize the lighting effect with music, stage performances, or event themes.
Designed for professional entertainment applications, the X-M25 offers a perfect combination of classic disco aesthetics, modern control technology, and reliable performance.
Key Specifications
Electrical Specifications
Input Voltage: AC 100–240V, 50/60Hz
Power Consumption: 60W
Power Connection: Self-locking plug-in power connector
Signal Connection: 3-pin XLR DMX In/Out
The wide voltage range allows the X-M25 to operate reliably in different regions worldwide, making it suitable for international entertainment projects and professional event installations.
Advanced Mechanical Rotation System
The X-M25 is equipped with a precision mechanical movement system designed to create smooth and dynamic mirror ball effects.
Mirror Ball Specifications
● Mirror Ball Diameter: Ø250mm (25cm)
● Movement Performance
● Pan Movement: 540° rotation with 16-bit precision control
● Tilt Rotation: 360° continuous infinite rotation system
The combination of horizontal and vertical movement allows the mirror ball to distribute reflections across different areas of a venue, creating immersive lighting effects from multiple angles.
The smooth rotation system ensures stable operation while reducing mechanical noise, making it suitable for professional entertainment environments where performance quality and reliability are essential.
Professional DMX512 Control System
The X-M25 is designed for easy integration into modern stage lighting systems.
● Control Modes
● DMX512 Control
● Sound Activated Mode
● Auto Run Mode
● DMX Channel
● 4CH Control
Through DMX512 control, lighting designers can precisely adjust rotation speed, movement direction, and lighting sequences, allowing the mirror ball effect to become part of a complete stage lighting show.
The sound activation mode allows the fixture to respond directly to music rhythms, making it especially suitable for DJ performances, dance floors, and nightclub environments.
Classic Disco Effect with Modern Technology
Mirror ball lighting remains one of the most iconic effects in entertainment history. The X-M25 updates this classic visual effect with intelligent movement control and professional installation features.
When combined with spotlights, beam lights, laser lights, or moving head fixtures, the rotating mirror ball creates:
● Moving reflection patterns
● Dynamic dance floor effects
● Retro disco atmosphere
● Sparkling ceiling effects
● Immersive party environments
The X-M25 is an excellent choice for venues looking to combine nostalgic disco style with modern lighting technology.
Compact Design and Easy Installation
The X-M25 features a compact structure suitable for different installation environments.
Product Dimensions
● Fixture Size: 35 × 27 × 45 cm
● Net Weight: 6 kg
● Packing Information
● Packing Size: 48.5 × 41 × 32 cm
● Gross Weight: 7.5 kg
The lightweight design allows convenient transportation, installation, and maintenance, making it suitable for both permanent installations and mobile event productions.
Durable Construction for Entertainment Applications
With an IP20 protection rating, the X-M25 is designed primarily for indoor entertainment environments.
It provides stable performance in applications such as:
● Nightclubs
● Bars
● Indoor event venues
● DJ stages
● Dance halls
● Wedding venues
● Entertainment centers
The reliable motor system ensures long-term operation during frequent performances and commercial use.
Applications and Uses
The Nightclub Rotating Mirror Ball Light X-M25 is widely used in:
● Nightclubs & DJ Events
● Create energetic dance floor atmospheres with classic mirror reflections synchronized with music.
● Bars & Entertainment Venues
● Add unique decorative lighting effects that attract customers and enhance venue identity.
● Concerts & Stage Productions
● Combine with professional stage lighting systems to create layered visual effects.
● Weddings & Private Events
● Provide elegant and romantic moving reflections for memorable celebrations.
● Theme Parties & Retro Events
● Perfect for disco-themed parties, festivals, and entertainment events.
● Commercial Installations
● Suitable for hotels, restaurants, shopping centers, and leisure spaces requiring attractive lighting decoration.
Why Choose the X-M25 Rotating Mirror Ball Light?
● Professional 25cm rotating mirror ball design
● Smooth 540° pan movement with 16‑bit precision
● 360° continuous tilt rotation system
● DMX512 compatible for professional control
● Sound activation for automatic music response
● Compact and lightweight structure
● Easy integration with existing stage lighting systems
● Ideal for nightclubs, DJs, and entertainment venues
● Creates classic disco effects with modern control technology
● Create Stunning Disco Atmospheres with X‑M25
The Nightclub Rotating Mirror Ball Light X-M25 combines the timeless appeal of disco mirror ball effects with modern DMX-controlled movement technology. Its smooth rotation, flexible control options, and professional design make it an excellent lighting solution for creating unforgettable visual experiences.
Whether installed in a nightclub, DJ stage, event venue, or entertainment space, the X-M25 delivers dynamic reflections and immersive lighting effects that transform ordinary environments into exciting and engaging experiences.
Parameter
| Input Voltage | AC 100–240V, 50/60Hz |
| Power Consumption | 60W |
| Power Connection | Self‑locking Plug‑in Power Connector |
| Signal Connection | 3‑pin XLR DMX In/Out |
| Mechanical System | |
| Mirror Ball Diameter | Ø250mm (25cm) |
| Pan Movement | 540°, 16‑bit Precision |
| Tilt Rotation | 360° Continuous Rotation (Infinite Rotation System) |
| Display & Control | |
| Display | LCD Digital Display |
| Control Modes | DMX512, Sound Active, Auto Run |
| DMX Channels | 4CH |
| IP Rating | IP20 |
| Product dimensions (L × W × H) | 35×27×45 |
| Net weight (kg) | 6KG |
| Packing dimensions (L × W × H) | 48.5×41×32 |
| Gross weight (kg) | 7.5KG |
